Diode Applications - MCQs

Posted by Unknown at 2:59 PM
Hits:
MCQs for Floyd's Diode Applications

Multiple Choice Questions Topic Outline

  • MCQs in Diode Operation
  • MCQs in Voltage-Current (V-I) Characteristics of a Diode
  • MCQs in Diode Models
  • MCQs in Half-Wave Rectifiers
  • MCQs in Full-Wave Rectifiers
  • MCQs in Power Supply Filters and Regulators
  • MCQs in Diode Limiters and Clampers
  • MCQs in Voltage Multipliers
  • MCQs in The Diode Datasheet
  • MCQs in GreenTech Application 2: Solar Power

Begin and Good luck!

1. If the ac supply is 60 Hz, what will be the ripple frequency out of the half-wave rectifier?

  • A) 30 Hz
  • B) 50 Hz
  • C) 60 Hz
  • D) 120 Hz

2. If the ac supply is 50 Hz, what will be the ripple frequency out of the full-wave rectifier?

  • A) 50 Hz
  • B) 60 Hz
  • C) 100 Hz
  • D) 120 Hz

3. A silicon diode in a half-wave rectifier has a barrier potential of 0.7 V. This has the effect of

  • A) reducing the peak output voltage by 0.7 V.
  • B) increasing the peak output voltage by 0.7 V.
  • C) reducing the peak input voltage by 0.7 V.
  • D) no effect.

4. In a regulated supply, what term describes how much change occurs in the output voltage for a given change in the input voltage?

  • A) load regulation
  • B) voltage regulator
  • C) line regulation
  • D) ripple voltage

5. In a regulated supply, what term describes how much change occurs in the output voltage over a certain range of load current values, from minimum to maximum current?

  • A) line regulation
  • B) voltage regulator
  • C) current regulator
  • D) load regulation

6. PIV is which of the following?

  • A) peak input voltage
  • B) peak inverse voltage
  • C) peak immediate voltage
  • D) positive input voltage

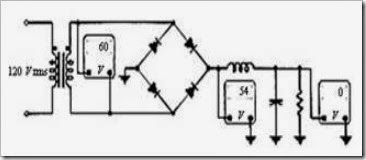

7. Refer to Figure 2-1. The probable trouble, if any, indicated by these voltages is

MCQs in Diode Applications Fig. 01

Figure 2-1

  • A) one of the diodes is open.
  • B) a diode is shorted.
  • C) an open transformer secondary.
  • D) the filter capacitor is shorted.
  • E) no trouble exists.

8. Refer to Figure 2-1. If the voltmeter across the transformer reads 0 V, the probable trouble, if any, would be

  • A) one of the diodes is open.
  • B) a diode is shorted.
  • C) an open transformer secondary.
  • D) the filter capacitor is shorted.
  • E) no trouble exists.

9. Refer to Figure 2-2. Which oscilloscope trace indicates the output from a properly operating half-wave rectifier without a filter?

MCQs in Diode Applications Fig. 02

Figure 2-2.

Assume that each scope has the same settings

  • A) a
  • B) b
  • C) c
  • D) d

10. Refer to Figure 2-2. Which oscilloscope trace indicates the output from a properly operating full-wave rectifier with a filter?

  • A) a
  • B) b
  • C) c
  • D) d

11. Refer to Figure 2-2. Which oscilloscope trace indicates the output from a full-wave filtered rectifier with an open diode?

  • A) a
  • B) b
  • C) c
  • D) d

12. Refer to Figure 2-2. The oscilloscope trace in (b) could represent the output from

  • A) a full-wave rectifier (no filter) with an open diode.
  • B) a normal half-wave power supply.
  • C) a filtered full-wave rectifier with an open diode.
  • D) a full-wave rectifier with a shorted diode.

13. Refer to the circuit in Figure 2-3(a). Refer to the output waveforms shown in Figure 2-4 and select the correct approximate output waveform.

MCQs in Diode Applications Fig. 03

Figure 2-3

MCQs in Diode Applications Fig. 04

Figure 2-4

  • A) a
  • B) b
  • C) c
  • D) d

14. Refer to the circuit in Figure 2-3(b). Refer to the output waveforms shown in Figure 2-4 and select the correct approximate output waveform.

  • A) a
  • B) b
  • C) c
  • D) d

15. Refer to the circuit in Figure 2-3(c). Refer to the output waveforms shown in Figure 2-4 and select the correct approximate output waveform.

  • A) a
  • B) b
  • C) c
  • D) d

16. Refer to the circuit in Figure 2-3(d). Refer to the output waveforms shown in Figure 2-4 and select the correct approximate output waveform.

  • A) a
  • B) b
  • C) c
  • D) d

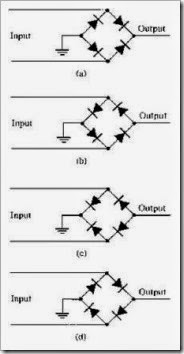

17. Refer to Figure 2-5. Which diode arrangement will supply a negative output voltage?

MCQs in Diode Applications Fig. 05

Figure 2-5

  • A) a
  • B) b
  • C) c
  • D) d

18. Refer to Figure 2-5. Which diode arrangement will supply a positive output voltage?

  • A) a
  • B) b
  • C) c
  • D) d

19. A silicon diode has a voltage to ground of –117 V from the anode. The voltage to ground from the cathode is –117.7 V. The diode is

  • A) open.
  • B) shorted.
  • C) forward-biased.
  • D) reverse-biased.

20. The output frequency of a half-wave rectifier is _____ the input frequency.

  • A) one-half
  • B) twice
  • C) equal to
  • D) none of the above

21. Each diode in a center-tapped full-wave rectifier is _____ -biased and conducts for _____ of the input cycle.

  • A) forward, 90º
  • B) reverse, 180º
  • C) forward, 180º
  • D) reverse, 90º

22. The output frequency of a full-wave rectifier is _____ the input frequency.

  • A) one-half
  • B) equal to
  • C) twice
  • D) one-quarter

23. What is the PIV for each diode in a full-wave center-tapped rectifier? Note: Vp(out) = peak output voltage.

  • A) Vp(out) – 0.7 V
  • B) Vp(out) + 0.7 V
  • C) 2Vp(out) – 0.7 V
  • D) 2Vp(out) + 0.7 V

24. In the operation of a half-wave rectifier with a capacitor-input filter, the ripple factor can be lowered by _____ the value of the filter capacitor or _____ the load resistors.

  • A) decreasing, decreasing
  • B) decreasing, increasing
  • C) increasing, decreasing
  • D) increasing, increasing

25. What type of diode circuit is used to clip off portions of signal voltages above or below certain levels?

  • A) clipper or limiter
  • B) clamper
  • C) IC voltage regulator
  • D) none of the above

26. What type of diode circuit is used to add or restore a dc level to an electrical signal?

  • A) clipper or limiter
  • B) clamper
  • C) IC voltage regulator
  • D) none of the above

27. What is the VRRM (PIV rating) for the 1N4001 rectifier diode?

  • A) 50 V
  • B) 100 V
  • C) 200 V
  • D) 400 V
  • E) none of the above

28. How many terminals do the 7800 series fixed positive voltage regulators have?

  • A) 2
  • B) 3
  • C) 4
  • D) 5
  • E) none of the above

Back to Homepage

Note: Check your works. Diode Applications - MCQs Answers


credit: Thomas L. Floyd©2013 www.FroydWess.com
